I have sat in press boxes where the VAR delay stretched past four minutes. The atmosphere drains out of a stadium in a way that no highlight reel ever captures. People stop singing. Players stand with their hands on their hips. And somewhere beneath the stands, in a room most fans will never see, someone is scrubbing through footage frame by frame trying to justify a call that will be argued about for weeks. It is awkward, occasionally maddening.
When a goal is disallowed in the final minutes of a World Cup group stage match, the Fifa World Cup betting odds shift within seconds long before most fans have processed what happened. That immediate reaction reflects how sensitive tournament expectations are to single decisions, especially in tightly contested matches where progression can hinge on one moment. That speed reflects something real – the 2026 VAR infrastructure is genuinely faster and more visually precise than anything seen at a previous tournament, and understanding why means looking at the hardware and software that matchday coverage rarely explains.
How VAR Camera Networks Are Built
What surprises people when they first learn about VAR infrastructure is how purpose-built it is. This is not a broadcaster pointing a spare camera at the goal and hoping for the best. Dedicated rigs are installed at fixed intervals around the ground, usually somewhere between eight and twelve units per venue depending on stadium geometry, each one chosen to cover the angles where tight calls actually happen. The penalty box, the goal line, the channels where attackers chase through balls, these are the pressure points and the cameras are placed accordingly.
The frame rates involved are higher than most people assume. Standard VAR feeds typically run between 50 and 100 frames per second, and goal-line cameras push well beyond that. A single frame at 50fps covers 20 milliseconds of movement. When you are trying to determine whether a striker’s armpit was level with a defender’s heel at the exact moment a pass was played, those 20 milliseconds are not a rounding error, they are the entire argument.

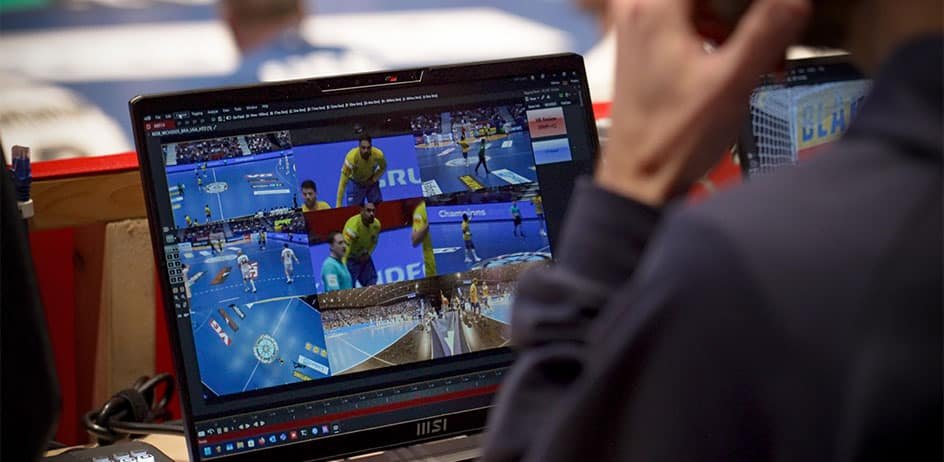

All of that footage travels down fibre optic cabling to a processing hub sitting somewhere inside the stadium itself. The deliberate separation from the main broadcast truck matters more than it sounds. VAR officials need a clean, guaranteed feed with no signal competition. By the time a referee is being asked to walk over to the pitchside monitor, the footage has already been ingested, timestamped and indexed for review. At World Cup level, where a single decision can reshuffle a group table and change how two or three teams are rated for the rest of the tournament, that speed of availability is not a luxury.
Computer Vision and the Offside Pipeline
The offside system used at recent World Cup tournaments, and refined further for 2026, is where computer vision becomes most visible to the public. Semi-automated offside technology works by tracking up to 29 data points on each player’s body, mapping limbs, torso and extremities independently rather than treating a player as a single point in space.
Dedicated tracking cameras, mounted high in the stadium roof, feed positional data into a machine learning model that reconstructs each player as a skeletal wireframe in real time. When a pass is played, the system identifies the precise frame of the kick using visual cues and locks the positions of all relevant players at that moment. It then calculates whether any attacking limb, a toe, a knee, a shoulder, extends beyond the last defender.
That calculation happens in roughly two to three seconds. The rendered graphic that appears on broadcast screens, the familiar blue and red lines bisecting the pitch, is generated from this skeletal data rather than drawn manually. What looks like a simple line overlay is actually a 3D projection mapped back onto a 2D broadcast frame, which is why the lines appear to follow the body’s contours rather than sitting flat on the pitch surface.
Real-Time Rendering and the Broadcast Layer
The rendering side of VAR is where the technology edges closest to what game developers and visual effects studios would recognise. Getting those offside lines to sit accurately on a broadcast frame requires photogrammetry, essentially a precise digital map of each stadium’s geometry, combined with spatial calibration data that tells the system exactly where every camera sits in three-dimensional space. The result is an overlay that lands at sub-centimetre accuracy regardless of which angle the director chooses to cut to.
Doing this consistently across a tournament spread across many venues is genuinely difficult. Pitch dimensions vary, floodlight configurations differ, and camera positions are never quite identical from ground to ground. Every stadium needs its own calibration pass before a ball is kicked, and the rendering output has to carry the same visual authority whether a line is being drawn in a packed 80,000-seat arena or a tighter, louder compact ground. The computational load of all this does not get shipped off to a server farm in another city either.
This system is located physically within the stadium to run, and it is the only way to reduce latency to ensure that the graphics show up on the screen before the speaker finishes his statement. Anybody familiar with the early days of VAR will know the benefits brought by this processing approach.
The Human Layer That Technology Cannot Replace
For all the sophistication of the camera rigs and rendering engines, the final call in a VAR review still belongs to a person. The video assistant referee reviews the processed footage and the generated graphics, but questions of intent, dangerous play, and whether contact was sufficient to constitute a foul sit outside what any algorithm can reliably determine.
What the technology does is narrow the space for error. A referee entering a review with a clear skeletal overlay and frame-accurate footage is working with far better evidence than one relying on a single broadcast angle from a low position. The decision may still be difficult, but it is an informed difficulty rather than an arbitrary one.
This balance between computational precision and human judgement is what makes VAR genuinely interesting as a technology story. The systems are not replacing the referee. They are giving the referee better tools and a more defensible basis for a ruling.
What 2026 Advances Further
Heading into the 2026 World Cup, several refinements are expected to tighten the system further. Improved synchronisation between tracking cameras and broadcast cameras reduces the small timing discrepancies that occasionally produced visual artefacts in offside graphics. Expanded body-point tracking adds granularity to handball reviews, where the position of the arm relative to the body is decisive. Faster stitching algorithms mean that multi-angle composite views arrive in the review suite more quickly.
The cumulative effect is a system where reviewable incidents are resolved faster, the graphics explaining those decisions are more accurate, and the margin for reasonable dispute is narrower than it has ever been. That does not mean every call will satisfy every fan. Football’s emotional logic operates on different rules to its technical one, but it does mean the technology is doing its job with increasing reliability.
The first whistle of a World Cup match carries decades of expectation. The systems described here are what ensure that by the final whistle, the right calls have the best possible chance of having been made.
